How to Limit the reserve bandwidth in the windows 7

There are many advanced features and most distinguishing features that are associated with the windows 7 operating system. Limiting the reserve bandwidth in the windows is one of the greatest features in the windows 7. Generally a system uses some percentage of the bandwidth of the internet connection that it can reserve for the system. This resource will provide you information on how to limit the system reserve bandwidth in windows 7.

For limiting the system reserve bandwidth you will have perform the following steps.

Step 1: First of all you should click the start button in the windows 7 and type Run. You will get the Run screen appeared.

Limit the reserve bandwidth in the windows 7

Step 2: Type gpedit.msc in the run option.

Limit the reserve bandwidth in the windows 7

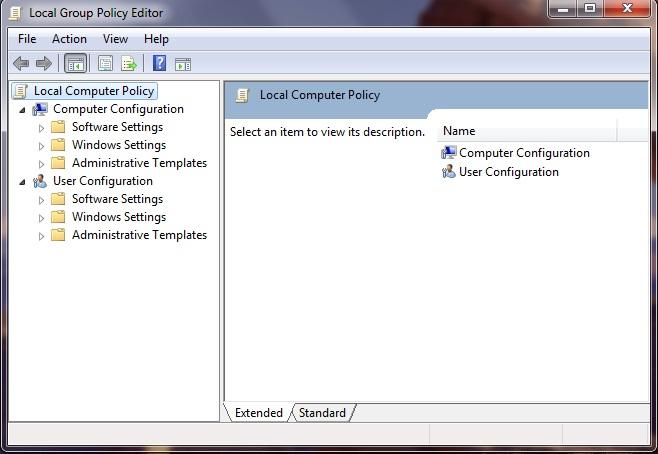

Step 3: You will be directed to the Local Group Policy Editor where you can find Computer configuration and the User configuration.

Limit the reserve bandwidth in the windows 7

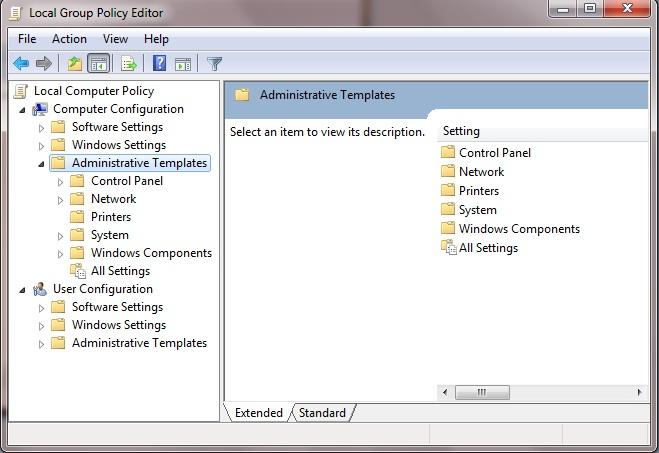

Step 4: Click the Administrative Templates that is present in the Computer configuration option. Select Network in the Administrative templates.

Limit the reserve bandwidth in the windows 7

Step 5: You will be getting list of setting for the Network option in the Administrative templates. Click on the QoS Packet Scheduler

Limit the reserve bandwidth in the windows 7

Step 6: Here you can find the list of setting for the packets. Now here you should double click Limit reservable bandwidth.

Limit the reserve bandwidth in the windows 7

Step 7: You will be getting a new window to change the setting. By default Not Configured option will be selected.

Limit the reserve bandwidth in the windows 7

Step 8: When you see that if the default option is Not Configured, even then you can see that the default bandwidth allocation will be 20 percent.

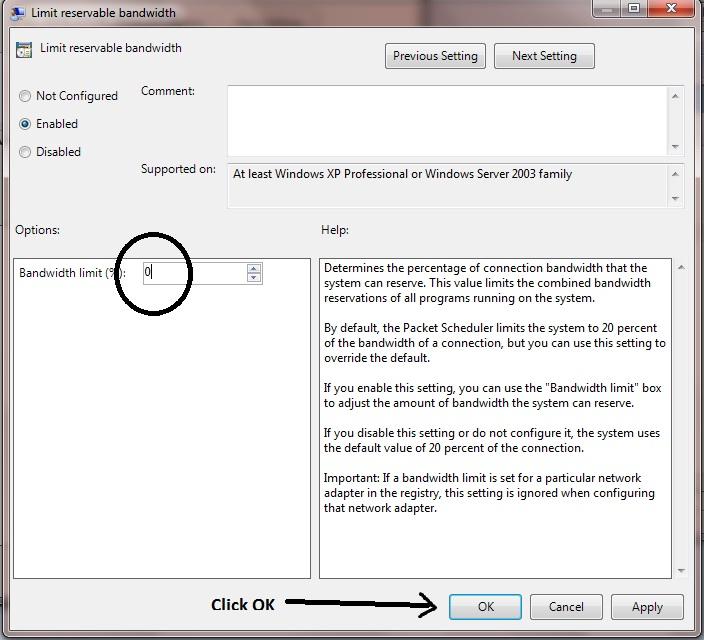

Step 9: You can click the Enabled option and you can find that the Bandwidth limit will be showed as the 20%

Limit the reserve bandwidth in the windows 7

Step 10: You can now make the Bandwidth limit value as zero and click the Ok button to finish the setting.

Limit the reserve bandwidth in the windows 7

Necessity of limiting reservable bandwidth

This particular configuration is necessary because 20 percent of your system bandwidth is getting wasted and not used by your network. Usually when the network adapter makes the changes in the registry this particular setting is ignored and the default limit of bandwidth reserved is in 20 percent itself. So when the network adapter configuration is done automatically it is necessary that we should go for the manual changes in the limiting of the system reserved bandwidth. This helps in making use of our network bandwidth to greater extent.

Limit the reserve bandwidth in the windows 7

Even if you keep the default reserved bandwidth in the Disabled position even then 20 percent will be set to default and used by the network adapter.
